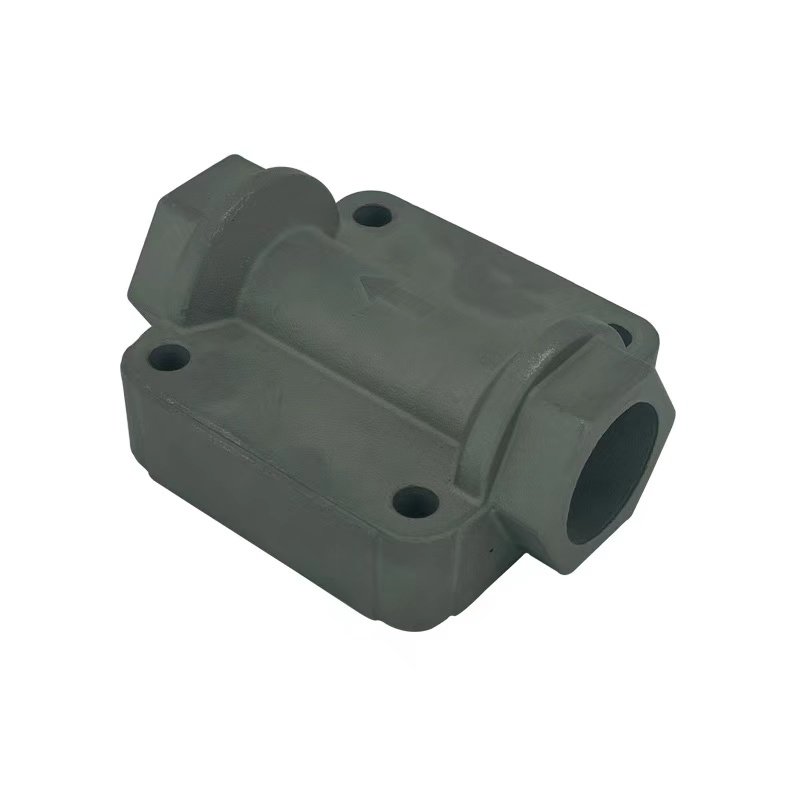

Investment casting Shell of liquid flowmeter

Short Description:

Liquid flowmeter is a kind of precise instrument which is made according to the principle of Carmen vortex, which is used to measure the flow of liquid, gas and steam in sealed pipeline. This part is the housing of the liquid flowmeter.

Product Detail

Product Tags

Product Name Material Dimension Application Casting tolerance Weight
1 (1) Shell of liquid flowmeter X8CrNiS8-9  110*85.6 mm Natural gas industry DIN ISO 8062-CT5  0.935kg



What is the liquid flow rate?

The direct measurement of liquid flow can be carried out by positive displacement flowmeter. These units divide the liquid into specific increments and then continue to flow. The total flow is the accumulation of measurement increments and can be calculated by mechanical or electronic techniques.

How does the liquid flow?

The velocity of kinetic energy depends on the pressure projection that makes the liquid flow through the pipe. Other influencing factors are density, viscosity and friction between liquid and inner wall of pipeline.

Processing Steps

Drawing→ Mold → Wax injection→ wax tree assembling→ Shell moulding→ Dewax-buring→ pouring→ Shell removing→ Cuttiing-Griding→ Machining → Deburring  → Surface Finishing → Assembly → Quality Inspection→ Packing
