China factory machining gate valve used in steam

Short Description:

Stop valve is a kind of gate valve, generally used in steam. The opening and closing parts of the globe valve are plug-shaped disc, the sealing surface is flat or conical, and the valve disc moves in a straight line along the center line of the fluid. The movement forms of the valve stem include the lifting rod type (the valve rod rises and falls, and the hand wheel does not rise and fall), and there are also the lifting and rotating rod type (the hand wheel and the valve rod rotate and lift together, and the nut is set on the valve body). The globe valve is only suitable for full opening and full closing, and adjustment and throttling are not allowed.


Product Detail

Product Tags

Product Name Material Dimension Application Casting tolerance Weight Finish

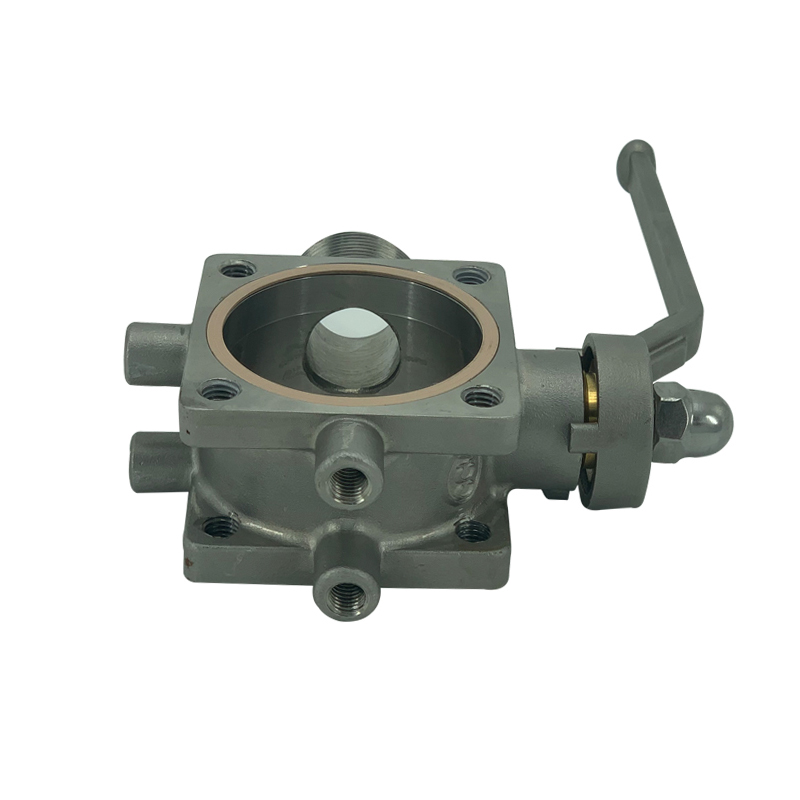

2-1 China factory machining gate valve used in steam AISI 304 φ70.5*φ105.29mm LNG 0.01 mm 3.19 kg Assembly

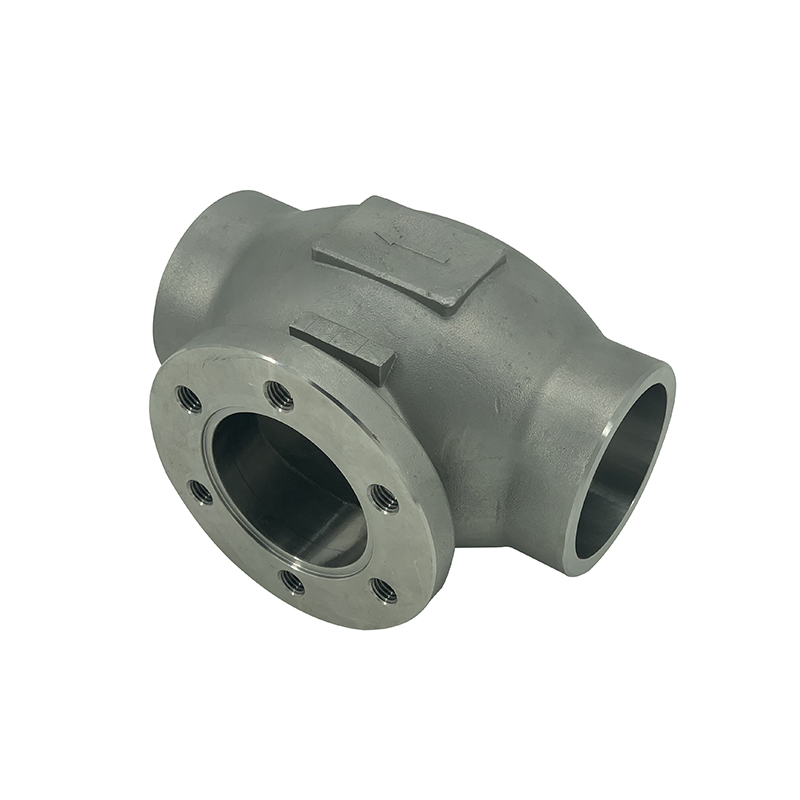

2-2   AISI 304  Length:153*157 mm LNG 0.01 mm 1.47 kg Assembly

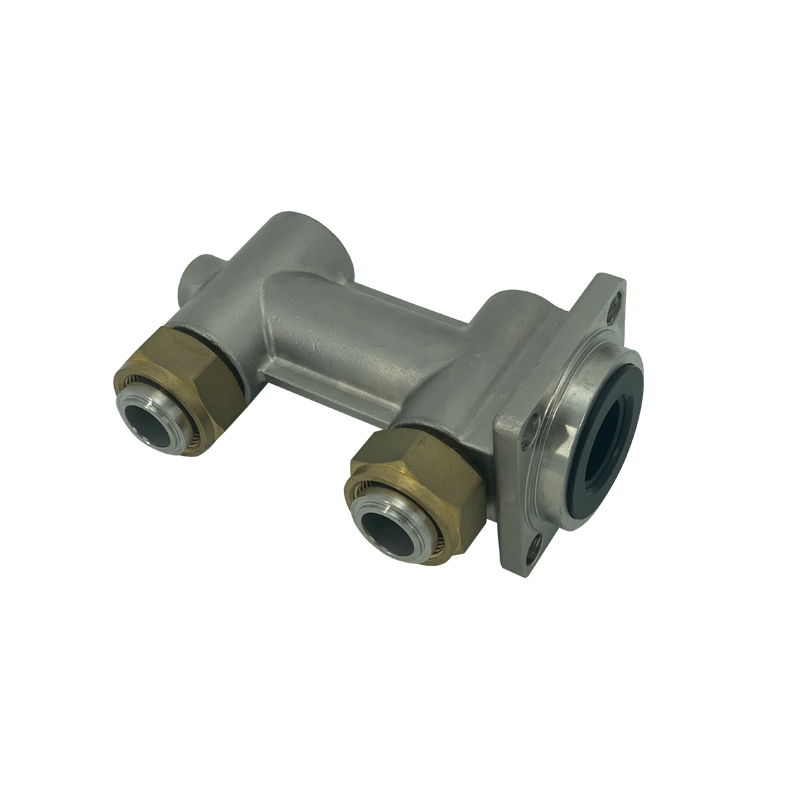

2-3   AISI 304 156*φ64.6mm LNG 0.01 mm 2.62 kg Assembly

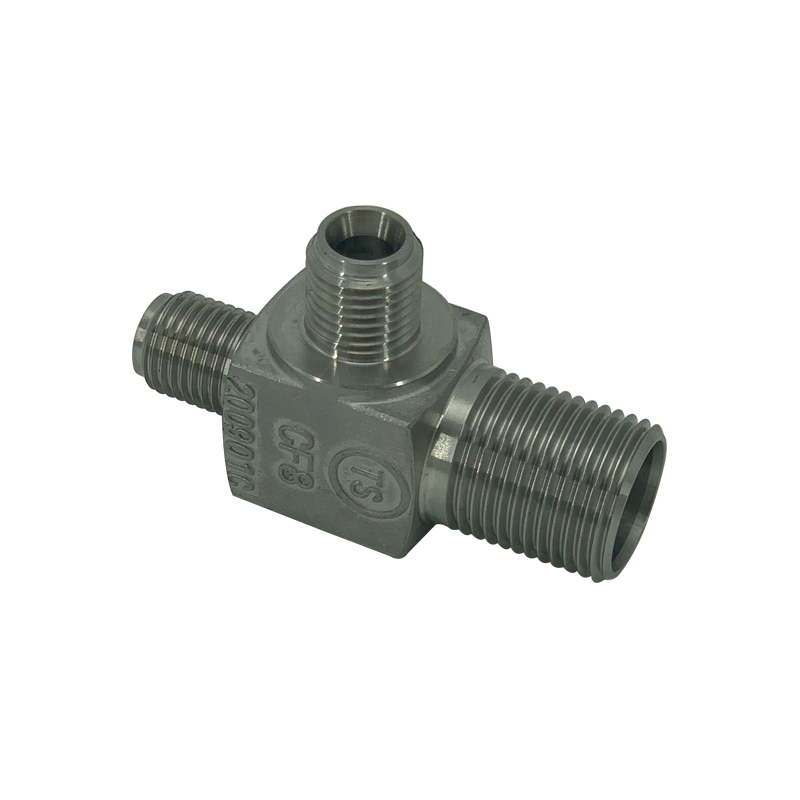

2-4   AISI 304 60*35 mm LNG 0.01 mm  0.10 kg Assembly



Description

Stop valve is a very efficient and economical product. We have a wide range of globe valves for various industrial applications.

Stop valve function:

Stop valve is used to cut off hot or cold water in pipeline equipment. Stop valve is a kind of valve system designed to prevent liquid from passing through the pipeline. It is generally used in important machinery or human workstation. There are many everyday applications we will find in SVA use, such as faucets, ice machines, bathrooms, dishwashers and washing machines.

The stop valve can be operated manually or automatically. Manual SVA usually has a screw handle to prevent fluid from passing through the pipeline, which is the most commonly used valve in pipeline applications. These valves are installed between fixtures and pipes that project from walls or floors. Globe valves allow routine maintenance, such as channel replacement and depletion cleaning, as well as replacement of entire equipment or machine or minor repairs, such as replacement of gaskets or water supply connections.

Type of stop valve:

There are two types of globe valves

  1. Corner channel type
  2. Straight track

Processing Steps

Drawing→ Mold → Wax injection→ wax tree assembling→ Shell moulding→ Dewax-buring→ pouring→ Shell removing→ Cuttiing-Griding→ Machining → Deburring  → Surface Finishing → Assembly → Quality Inspection→ Packing
