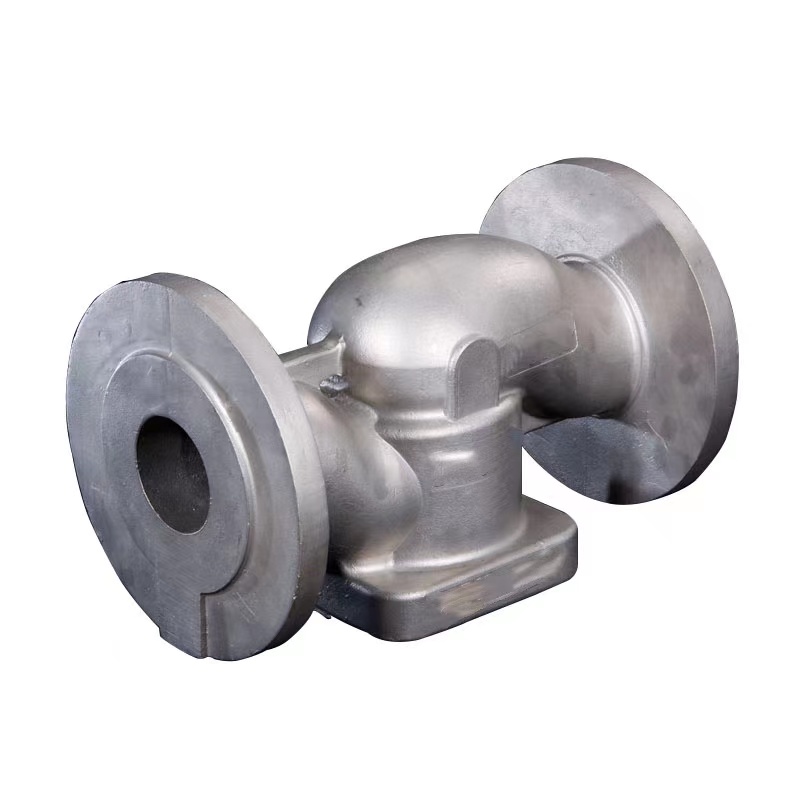

Stainless steel globe valve used in medical industry

Short Description:

This is a flange globe valve. Flange globe valve is a kind of forced sealing valve, so when the valve is closed, pressure must be applied to the valve disc to force the sealing surface not to leak. When the stop valve is opened, when the opening height of the disc is 25% – 30% of the nominal diameter, the flow has reached the maximum, indicating that the valve has reached the full open position. Therefore, the full opening position of the valve should be determined by the position of the valve. This kind of valve should be installed horizontally in the pipeline.

Product Detail

Product Tags

Product Name Material Dimension Application Casting tolerance Weight
1 Stainless steel globe valve used in medical industry CF8M DN 50 Medical industry ISO 8062 CT6 6.5kg



What is flange valve?

Flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides convenience for cleaning, inspection or modification. Flanges are usually welded or threaded. Flange joint is to connect two flanges with bolts, and the flange is sealed with gasket.

What is the function of the glove valve?

Globe valve is widely used in factory pipeline because of its shape. They are suitable for manual and automatic operation. Unlike gate valves, globe valves can be used to regulate flow or pressure and fully close flow.

Where is the flange used?

Flanges are used to connect valves, pipes, pumps and other equipment to form a piping system. Usually, two flanges are connected together by bolts or flanges to facilitate sealing.

What is the symbol of stop valve?

For globe valves, modify the symbol by adding a small dark circle between the triangles. We can see that the P & ID and isometric symbols are almost the same, except that the endpoint type has changed.

Processing Steps

Drawing→ Mold → Wax injection→ wax tree assembling→ Shell moulding→ Dewax-buring→ pouring→ Shell removing→ Cuttiing-Griding→ Machining → Deburring  → Surface Finishing → Assembly → Quality Inspection→ Packing
