Precision casting and machining automotive component

Short Description:

This automotive component is produced by Silica sol casting, used by green wax. And the surface roughness is Ra. 6.3.

Automobile flange is mainly used to connect valves, pipes, pumps and other equipment to piping system and auxiliary equipment. In the piping system, automobile flanges are welded or screwed together. In the system, the flange connection is connected by two automobile flanges or bolts, and the gasket provides effective sealing.

Product Detail

Product Tags

Product Name Material Application Casting tolerance Weight

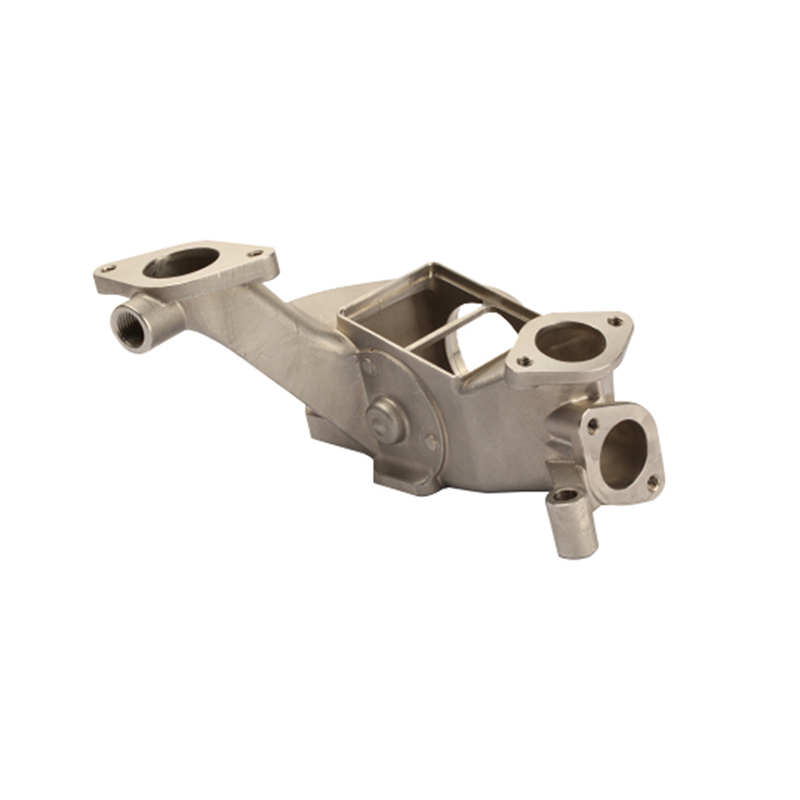

2-1 Precision casting automotive component 1.4308 Automotive ISO 8062 CT5 1.12 kg

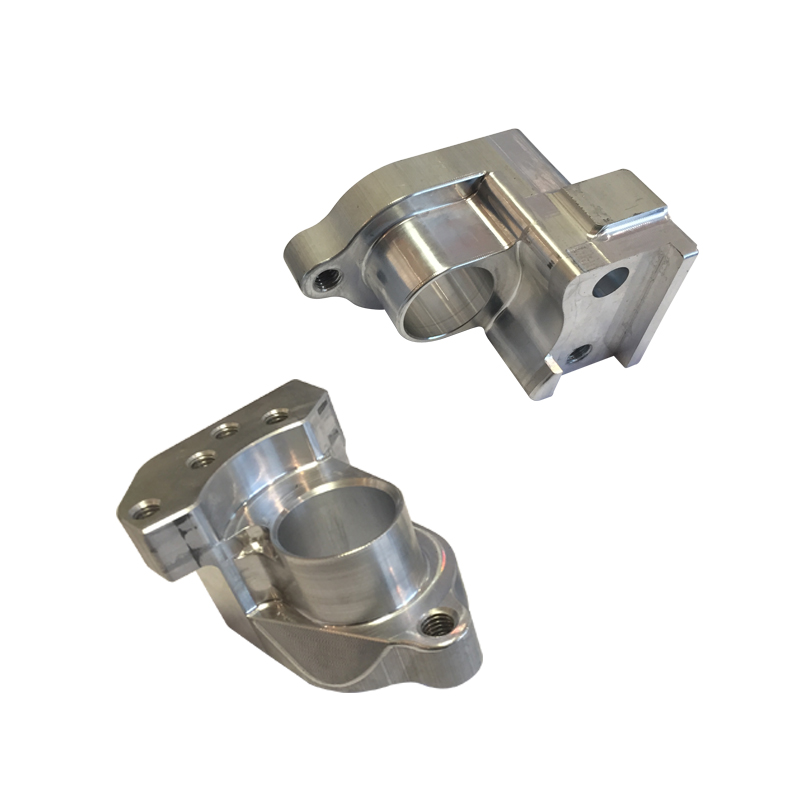

2-2 Aluminium automotive component on Karting Aluminium Karting    90 g

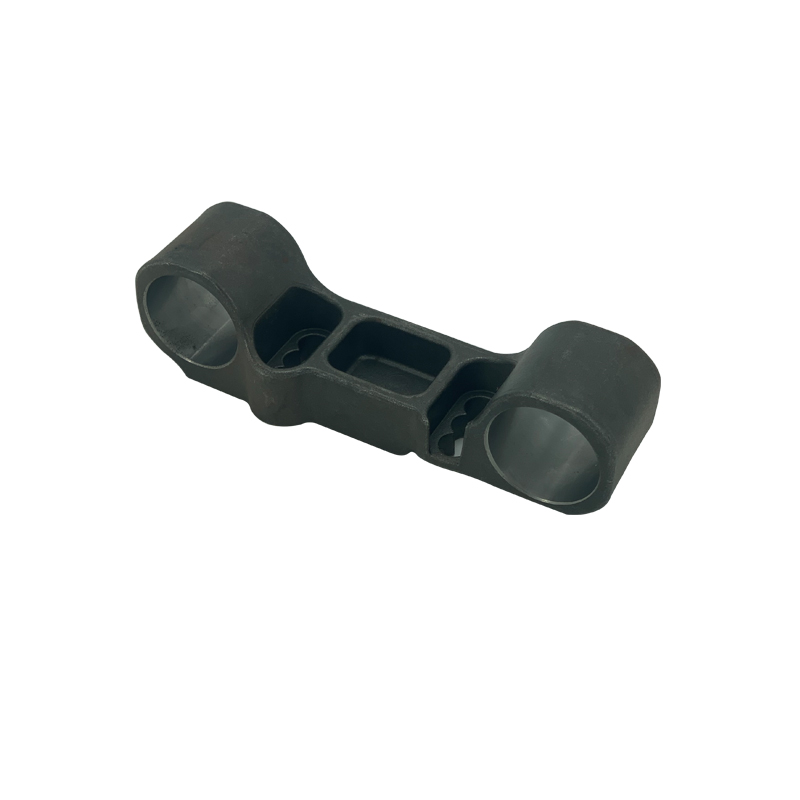

2-3 Precision casting and machining automotive component 30CrNiMo8 Karting ISO 8062 CT5 0.48 g


In the automobile industry, it is a rule of thumb to choose the material of automobile flange. In most cases, the material of automobile flange and tube assembly remains unchanged. There are many designs of automobile flange available in the market, such as welding neck, sliding sleeve, flat, blind and threaded. These designs are manufactured in such a way that they can meet the requirements of specific target applications. In addition, automobile flange manufacturers are also keen to customize different sizes of flange according to the needs of end users. These automobile flanges need to pass some standards before they are put on the market, such as ASME standard (USA), European dimension en / DIN, etc.

Processing Steps

Drawing→ Mold → Wax injection→ wax tree assembling→ Shell moulding→ Dewax-buring→ pouring→ Shell removing→ Cuttiing-Griding→ Machining → Deburring  → Surface Finishing → Assembly → Quality Inspection→ Packing
